Are you NEC 2020 Compliant?
NEC 2020 is officially here with new residential surge protection requirements found in Article 230.67. We can help you stay compliant.
What are power surges and spikes?
Surges and spikes are temporary and instantaneous events that increase "normal" electrical line voltage, and can cause serious damage to sensitive equipment. Conventional fuses and breakers do NOT guard against power surges and spikes. These are caused by Direct Lightning Strike, a Proximity Strike, Brownout or Blackout, Utility Grid Switching and Inductive Loads.
What equipment should be protected?
Power surges, spikes, and electrical outages can damage any type of unprotected electrical cabling, including utility power lines, data network and communication lines, and CCTV/CATV cable feeds. Therefore, surge protection should be installed on all critical electronic systems and the electrical paths between them.
Surge Protection Kits
Surge Kit 1
Install (1) DTK-120/240XD surge protector below the outside power pack.

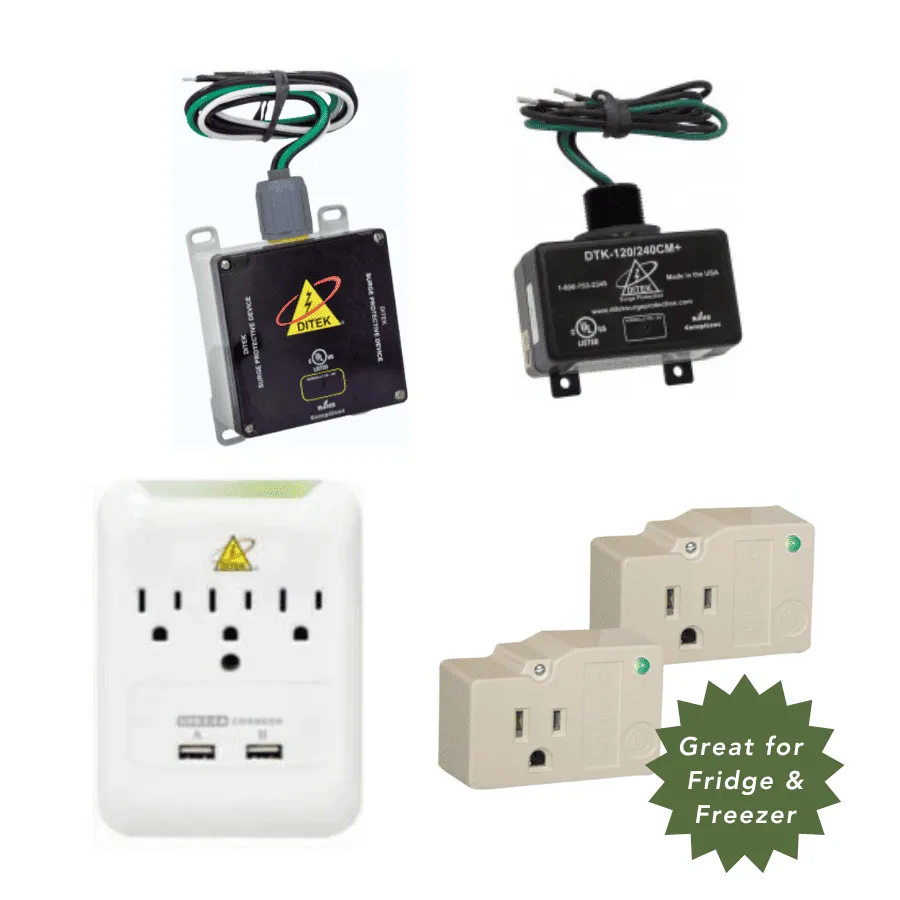

Surge Kit 2
Install (5) surge protection devices.
(1) DTK-120/240HD2 Main Panel or Meter
(1) DTK-120/240CM+ HVAC/Pool Controls
(1) DTK-3VWMUSB 3 Outlet Plug-In Surge Strip
(2) DTK-1F Single Outlet Surge Protector

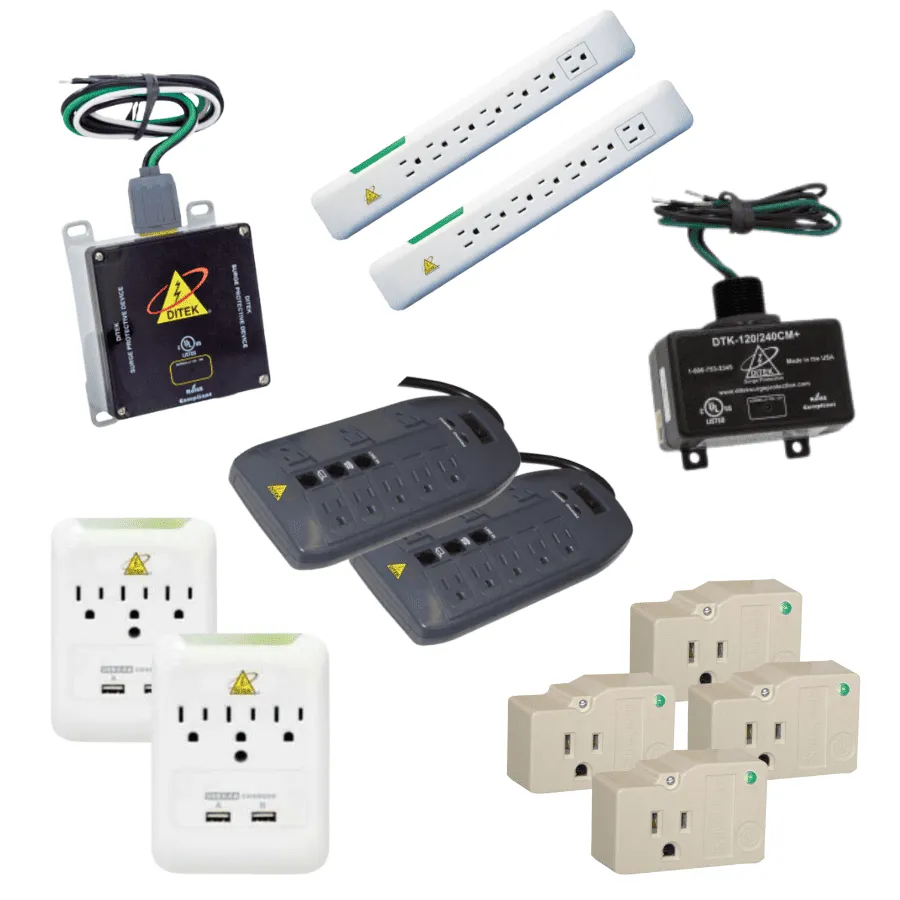

Surge Kit 3
Install (13) total surge devices.
(1) DTK-120/240HD2 Main Panel or Meter
(1) DTK-VSPA CATV
(1) DTK-120/240CM+ HVAC/Pool Controls
(2) DTK-8FF 8 Outlet Plug-In Surge Strip
(2) DTK-3VWMUSB 3 Outlet Plug-In Surge Strip
(2) DTK-7VS 7 Outlet Plug-In Surge Strip
(4) DTK-1F Single Outlet Surge Protector
Surge Protection Devices
A work in progress...
DTK-120/240 HD2
“BEST” for Main Panel or Meter
Designed to protect 120/240V split phase electrical panels. Ideal for residential or small commercial buildings.
– 100,000 Amps per phase surge current rating ensures long service life
– Diagnostic LED indicates system power and SPD function
- NEMA 4X weatherproof enclosure
– UL1449 Listed Type 1 SPD
DTK-120/240 XD
GOOD" for Main Panel or Meter
Designed to protect 120/240V split phase residential electrical panels. Its compact size enables close mounting to the protected panel, minimizing wire length and maximizing performance.
– 100,000 Amp total surge current rating ensures long service life, Compact size enables close mounting to protected panel, minimizing wire length and maximizing performance
– Diagnostic LED indicates system power and SPD function
– UL1449 Listed Type 1 SPD
DTK-120/240 CM+
HVAC and Pool Controls
Multi-purpose surge protective device ideal for protecting HVAC condensers, pool or well pumps, motors and incoming utility power.
– 50,000 Amp Total Surge Current Rating
– Diagnostic LED provides indication of power, ground presence and SPD function
– NEMA 4X weatherproof enclosure
– UL1449 Listed Type 1 SPD
DTK-VSPA
CATV Surge Protector
DITEK's DTK-VSPA video surge protector is recommended for applications where AC power is already protected. Ideal for CATV, broadband cable and digital satellite systems.
– F Type connectors to protect a variety of video devices
DTK-8FF
8 Outlet Surge Protector
Protect AC power and telco/fax lines with DITEK's DTK-8FF eight-outlet plug-in surge protector. Accepts up to six transformers at the same time.
– Diagnostic LED indicates ground presence and suppressor function
– EMI/RFI noise filtering provides extra protection for sensitive electronics
– Automatic shutdown feature turns off power in case of suppressor overload
DTK-7VS
7 Outlet Surge Protector
With Load Sensing Technology
– Illuminated load-status indicator
– different colors for each level of load status
– 2-in-1 power ON/OFF rocker switch
– UL1449 Listed Type 3 SPD
DTK-3VWMUSB
3 Outlet Surge Protector
120VAC with Load Sensing Technology
– Illuminated load-status indicator
– different colors for each level of load status
– 2 port USB charger (Total 5V/2.4A)
– UL1449 Listed Type 3 SPD
DTK-1F
1 Outlet Surge Protector
AC power protection for alarm panel transformers and point of use appliances.
Fridge/Freezer/Sprinkler...
– F Type connectors to protect a variety of video devices
– Single AC outlet protects critical equipment
– Center screw secures to outlet and can also secure a connected transformer
– Diagnostic LED indicates AC power and SPD function
– UL1449 Listed Type 3 SPD
